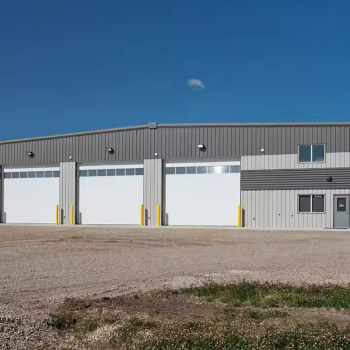

Prefabricated american standard prefab steel structure construction and real estate warehouse
- group name
- Folding Container House
- Min Order
- 1 square meter
- brand name
- Junnan Steel Wholesale
- Nearest port for product export
- Tianjin port, Jingtang port, Caofeidian port, Main port china
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash
- update time
- Thu, 30 Jan 2025 04:35:05 GMT
Paramtents
Grade Q235 Q345 & Q355B steel
Type Light
Application Steel Workshop
Processing Service Bending, Welding, Decoiling, Cutting, Punching
Window Sliding Window, PVC window or aluminium window
Door sliding door or rolling door
Wall Cladding Steel color sheet, sandwich panel
Roof Cladding Steel color sheet, sandwich panel glass wool and
Packging & Delivery
-
Min Order1 square meter
Briefing
Steel structure building is built over three members connected to each other by bolts and screws
Detailed
Steel structure building is built over three members connected to each other by bolts and screws:
· Primary members (columns, beams)
Steel columns will be H section steel, square tube steel according to different type of buildings. Steel beams are usually H section steel.
· Secondary members (C or Z purlins, bracing...)
Roof and wall sheeting or sandwich panel (EPS, fiberglass wool, PU sandwich panel)
Other building components (Rolling doors, aluminium windows, etc.)
· The entire primary members and secondary members are designed and fully fabricated including cut-to-length, punching, drilling, welding and performing in the factory before shipping to the site for erection.
At the site, all components are assembled and jointed via nut & bolt connections; thereby reducing the costs and assembly times.
Specification
|
Structure
|
Part
|
Specification
|
|
Main Structure
|
Frame Column and Beam
|
Q355B H/I Section & As drawings
|
|
Welding
|
Automatic Submerged Arc Welding
|
|
|
Surface Processing
|
Coating or Galvanized
|
|
High Strength Bolt | Grade 10.9 | |
Secondary Structure | Purlin | C/Z Purlin Size from C120-C320,Z100~Z300, |
Angle Brace | Q235B L-Steel | |
Cross Brace/X Brace | Q235B Round Pipe | |
Tie Bar | Q235B Round Bar | |
Roof System | Roofing Material | Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm |
Skylight Panel | 1.2mm FRP | |
Gutter | Steel Gutter Galvanized/Coated 2.0mm-3.0mm | |
Rainspout/Down Pipe | PVC Pipe | |
Wall System | Wall Material | Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm |
Accessories | Sealant, Self-tapping Screw etc | |
Edge Cover | Color Steel | |
Ventilator | Unpowered Axial-Flow Ventilator or Monitor Roof | Customizable |
Door | Electric Rolling Door/Sliding Door/Access Side Door | Customizable |
Window | Aluminum/PVC | Customizable |
Crane | 1-200 T | Customizable |
Packing | Main steel frame without packing load in 40' OT; | |
Roof and wall panel load in 40' HQ! | ||
H-Shaped Steel
The advantages of our products:
high-performance thermal insulation, ventilation moisture-proof materials provide extremely high living comforts
Z steel and C steel contrast
When the roof slope is small, the bending modulus of Z-type purlin is slightly greater than that of C-type purlin, but the
difference is not significant. When the roof slope increases, the efficiency of the flexural modulus of z-type purlin
symmetrical in the vertical direction increases. Therefore, Z-purlin is suitable for the roof with a larger slope. For metope,
choosing Z or C does not make much difference. If a purlin is to be made into a continuous member, it is best to Z purlin,
because it is easy to lap.
Sandwich Panel
Sandwich panel is suitable for projects with high fireproof requirements. With a good sound-proof effect. In addition, indoor
noise caused by rain and hail obviously. after sandwich is used.
Service we supply
1. Customization Service
We have a professinal design team with 10 years design experience. We can meet your individual needs.
And multi-type steel components, roof and wall panels, doors and windows for choosing.
2. Production Visualization
We can provide you with picture、video information of all production links, from raw materials to steel processing, the whole process of visual production. You can even video call us to watch workshop production.
3. Installation Guide
Installation instruction and video will be provide, we can also send our engineers to your site as installation guide, they will teach your people how to build project.
How to get quotes
· If you have drawings, welcome to share drawings with us, quoation will be done based your drawings. Our excellent design team will
design the steel structure workshop warehouse for you.
· If you give the following information, we will give you an satisfactory drawing.
① Location (where will be built? ) which country? which city?
② Size: Length*width* Eave height _____mm*_____mm*_____mm
③ wind load (max. Wind speed) _____kn/㎡, _____km/h, _____m/s
④ snow load (max. Snow height) _____kn/㎡, _____mm, temperature range?
⑤ anti-earthquake level ？
⑥ Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
⑦ Windows and Doors: what material, quantity, and type?
Packing and Delivery
Protective packing, Steel frames will be load in 40'OT or 40'GP, roof and wall panels and others will be load in 40'HQ or 40'GP
Project show
Certificate
FAQ
1. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything
we can to reduce your cost and guarantee you get the best product that you paid for.
2. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
3. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
4. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5
star hotel.
5. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after
receiving deposit.
6. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.e compared with other companies?
